- Описание

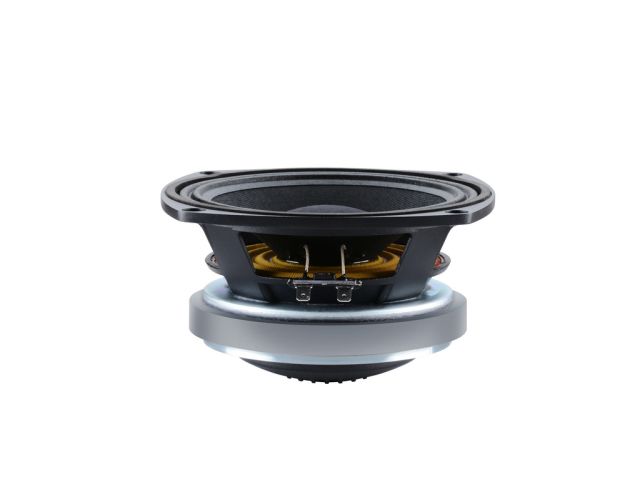

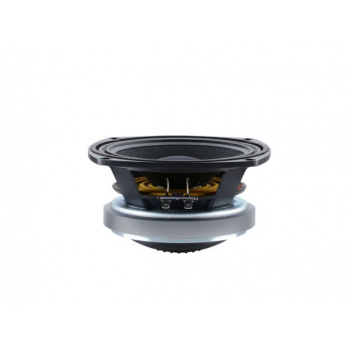

2-way coaxial PA speaker, 150 W, 8 Ω

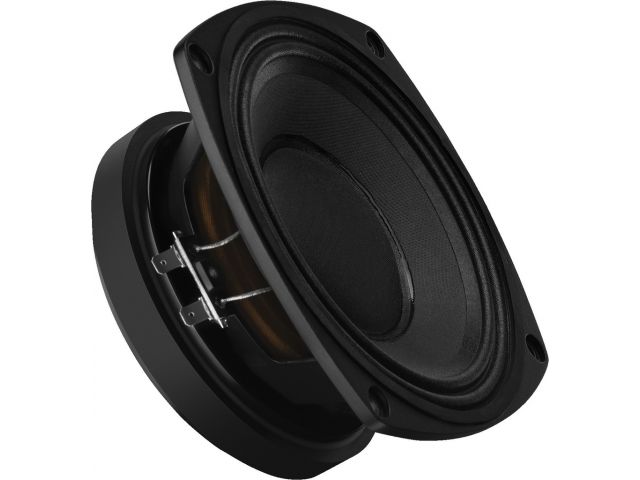

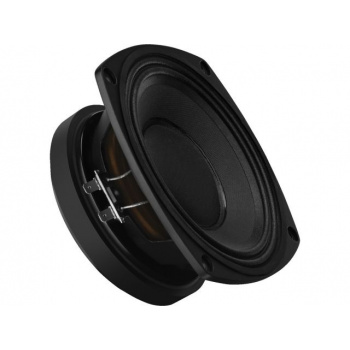

- 165 mm (6½") high-performance PA bass speaker of high efficiency

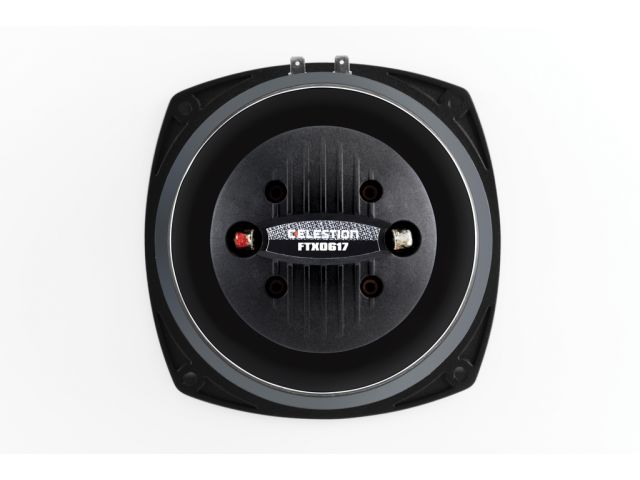

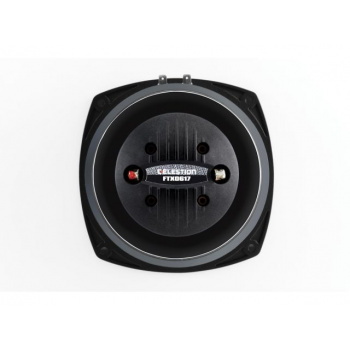

- Coaxially arranged horn tweeter with 25 mm (1", voice coil = 34 mm) high-frequency driver
- FEA-optimised drive with one common magnet only for high-frequency driver and bass driver. Thus, very low mounting depth for a coaxial speaker
- Integrated demodulation rings for reducing electromagnetic distortions
- Robust diecast basket with rear-ventilated centering spider
- 50 mm (2") heat-resistant voice coil on a glass fibre voice coil former
- High-frequency driver with 34 mm voice coil and polyamide cone
- Nominal radiation angle of horn tweeter: 100°
- Ideally suited for compact PA satellite speakers, studio monitor speakers and hi-fi in combination with subwoofer systems
- Operation only allowed with crossover network (recommended crossover frequency: > 2,200 Hz)
