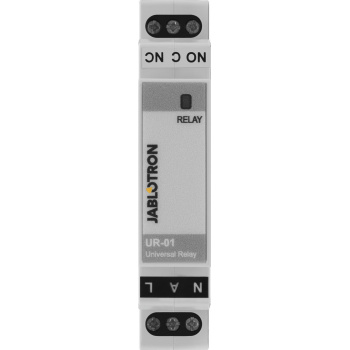

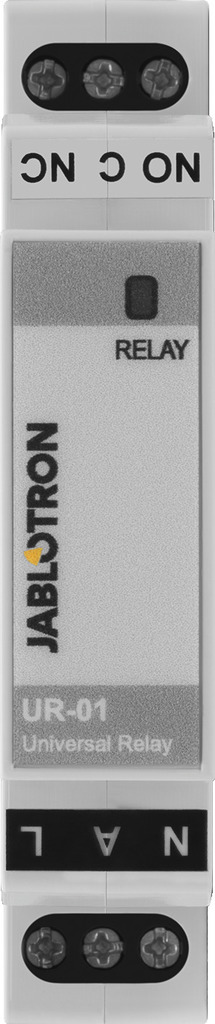

UR-01

media/JPG/1024/O/O0/O047050A
Universal relay module, for DIN rail installations. Input power: 230 V~ Features galvanically isolated change-over contacts Switching capacity: 250 V~/24 V DC, 16 A max. For DIN rail installations in switch cabinets The relay features a DIP circuit for selecting and adjusting eight fe ...Читать далее



  • Описание
Universal relay module,
for DIN rail installations.
  • Input power: 230 V~
  • Features galvanically isolated change-over contacts
  • Switching capacity: 250 V~/24 V DC, 16 A max.
  • For DIN rail installations in switch cabinets
  • The relay features a DIP circuit for selecting and adjusting eight features/characteristics
  • Offers several functions, e.g. change-over relay (NO/NC), delayed disconnection, delayed switching on
  • Conductor cross section of connection cable: 2 x 1.5 mm2 or 1 x 2.5 mm2 max.
