CAT-1TEST

/media/product/C292070A
Line tester, for testing the continuity of Cat. 5, Cat. 6 and ISDN network lines. Connection test with LED indication for 8 single cores and shielding Detection of continuity, miswiring, disconnection, short circuit, crossover cable and earthing Connection compatibility with the following ...Читать далее



  • Описание

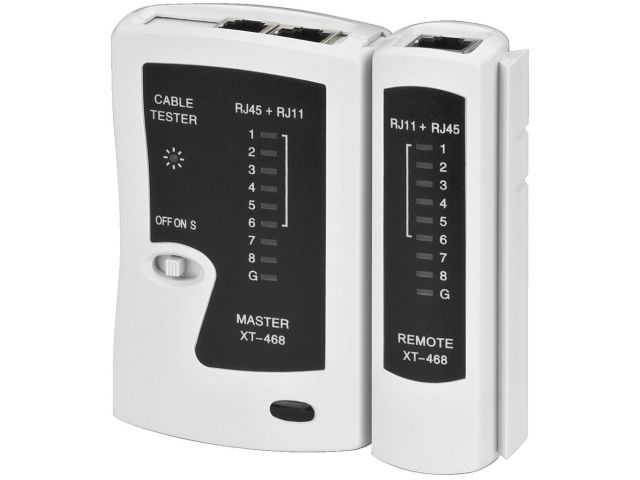

Line tester,
for testing the continuity of Cat. 5, Cat. 6 and ISDN network lines.
  • Connection test with LED indication for 8 single cores and shielding
  • Detection of continuity, miswiring, disconnection, short circuit, crossover cable and earthing
  • Connection compatibility with the following modular plugs: RJ45 (8P8C), RJ12 (6P6C), RJ11 (6P4C, 6P2C)
  • Supported network standards: Token Ring, 10Base-T, 10Base-T2, 285A, TIA568A/568B
  • Separate receiver for extra long and extensively laid cables
  • Main device and separate receiver can be attached to each other via lateral guiding rail
  • Power supply via 9 V battery (not supplied)
  • Supplied with protective bag
