SD Card Recorders as an Addition to Network Recording
Cameras with a built-in SD card recorder can also be operated as a stand-alone unit, a permanent connection to a network is not required. Contrary to mere network recording, the images are stored locally on the camera. This minimises the cabling effort required and allows for flexible surveillance applications, e.g. monitoring construction sites or temporary applications. A continuous data transmission in the network is not required either. Thus, an existing network system is only used during the analysis of recordings.
For the analysis, e.g. connect a notebook via the network connection or remove the SD card and read it out externally.
Cameras with a built-in SD card recorder can also be operated as a stand-alone unit, a permanent connection to a network is not required. Contrary to mere network recording, the images are stored locally on the camera. This minimises the cabling effort required and allows for flexible surveillance applications, e.g. monitoring construction sites or temporary applications. A continuous data transmission in the network is not required either. Thus, an existing network system is only used during the analysis of recordings.
For the analysis, e.g. connect a notebook via the network connection or remove the SD card and read it out externally.

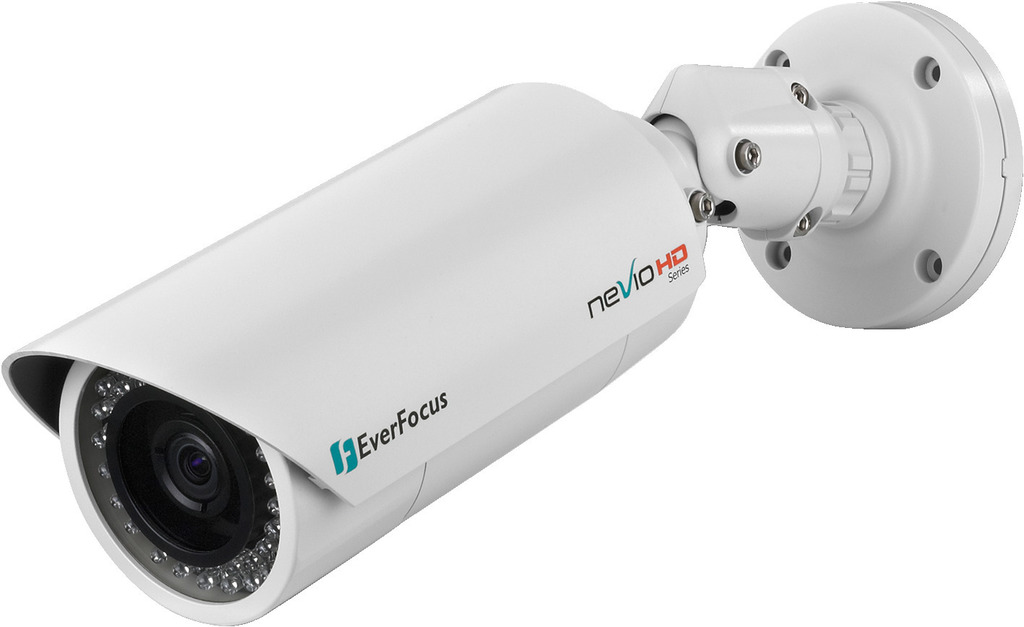

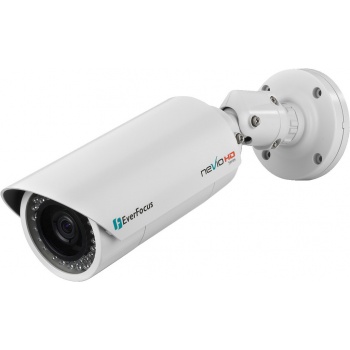

2 megapixel network infrared colour camera for outdoor applications, with integrated micro SD card recorder, webserver, WDR function and professional day/night function.
- Colour camera with progressive scan CMOS technology, 1920x1080 pixels max. (Full HD)
- Zoom lens: 2.8-10 mm, motorised
- 44 infrared LEDs (IR operating range: 40 m, with optimum reflection)
- With integrated IR suppression filter for perfect colour quality at daytime, automatic change of suppression filter at night for activating the IR light suitability and increasing the luminous sensitivity in B/W operation
- Image compression: H.264, MJPEG
- 3 independently adjustable network video streams, 25 images/s max. each
- Integrated micro SD card slot (for media up to 64 GB, not supplied)
- Webserver function for the connection to LAN or the Internet
- Video motion detector function, 4 zones
- Privacy masking function, 4 zones
- Bidirectional audio transmission
- Alarm input and alarm output
- Power supply via optional PSU (PSS-1230DC or PS-120WP) or via Power over Ethernet (PoE)
- Supplied with sunshield, wall bracket for panning and tilting and 30 cm connection cable
